  1. WORKFLOW BUILDER
  2. Introduction

How to add a new workflow?

PreviousNavigating workflow builderNextHow to view draft workflows?

Last updated 2 years ago

Was this helpful?

Let's create the reimbursement workflow as described in the section. We will configure this workflow using the form Claim Reimbursement <<add public link>> located in the group Reimbursement.

To create a workflow,

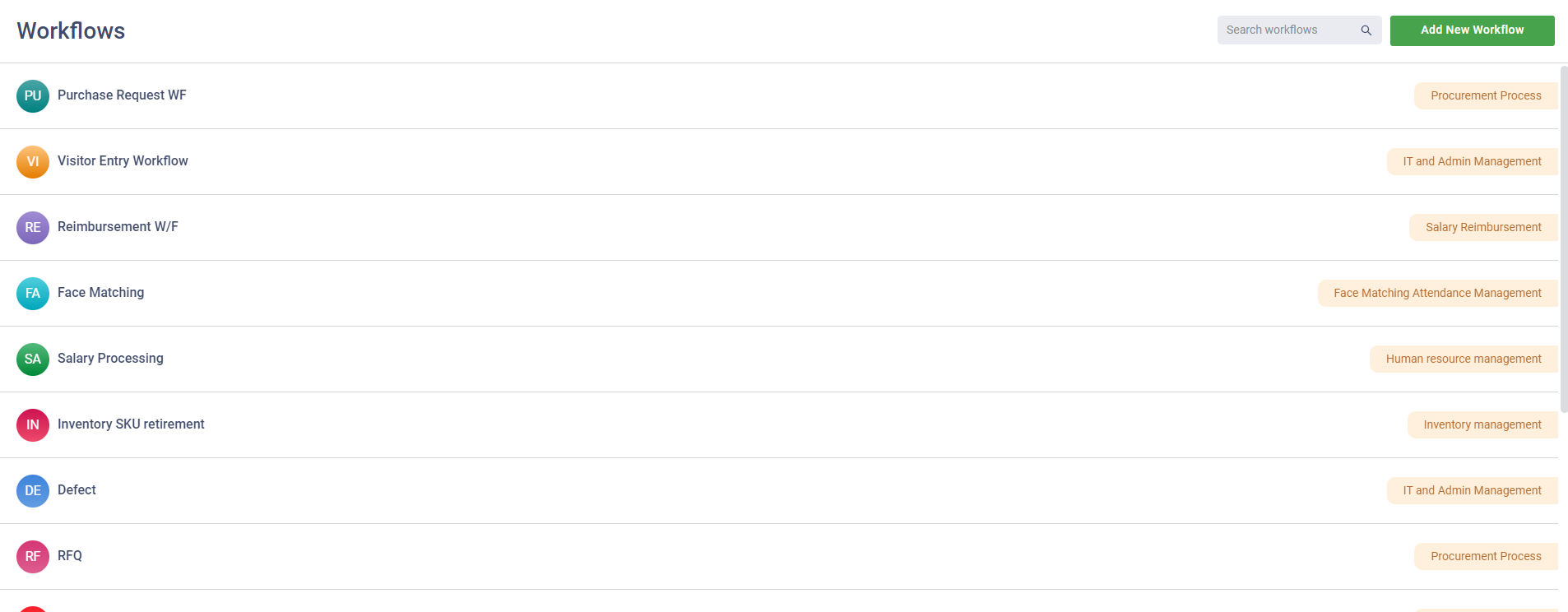

1. From the Studio dropdown menu, select Workflow builder. The Workflows screen is displayed.

2. At the top right of the screen, click Add New Workflow. The Workflow details screen is displayed.

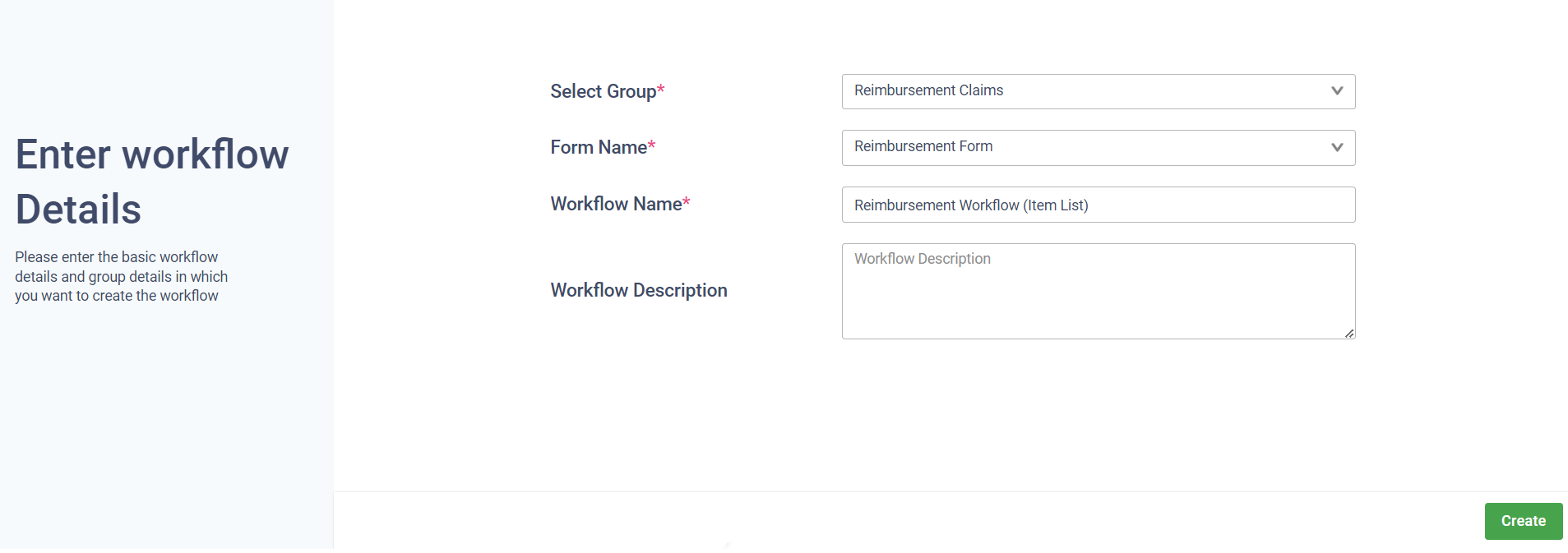

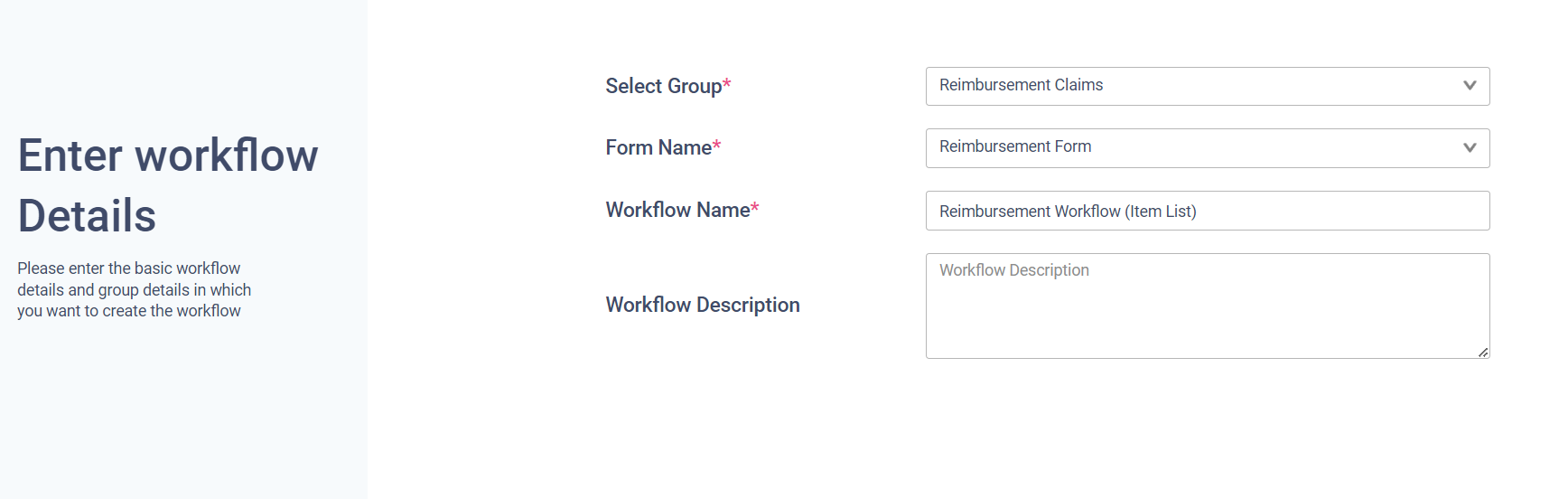

3. Enter/Select the values for the following details:

Field

Description

Value entered/selected

Select Group*

The group in which you want to create the workflow

Reimbursement

Form Name*

The form for which you want to create the workflow

Claim Reimbursement

Workflow Name*

The name of the workflow

Reimbursement workflow

Workflow Description

The description for the workflow to be created

4. At the bottom right of the screen, click Create.

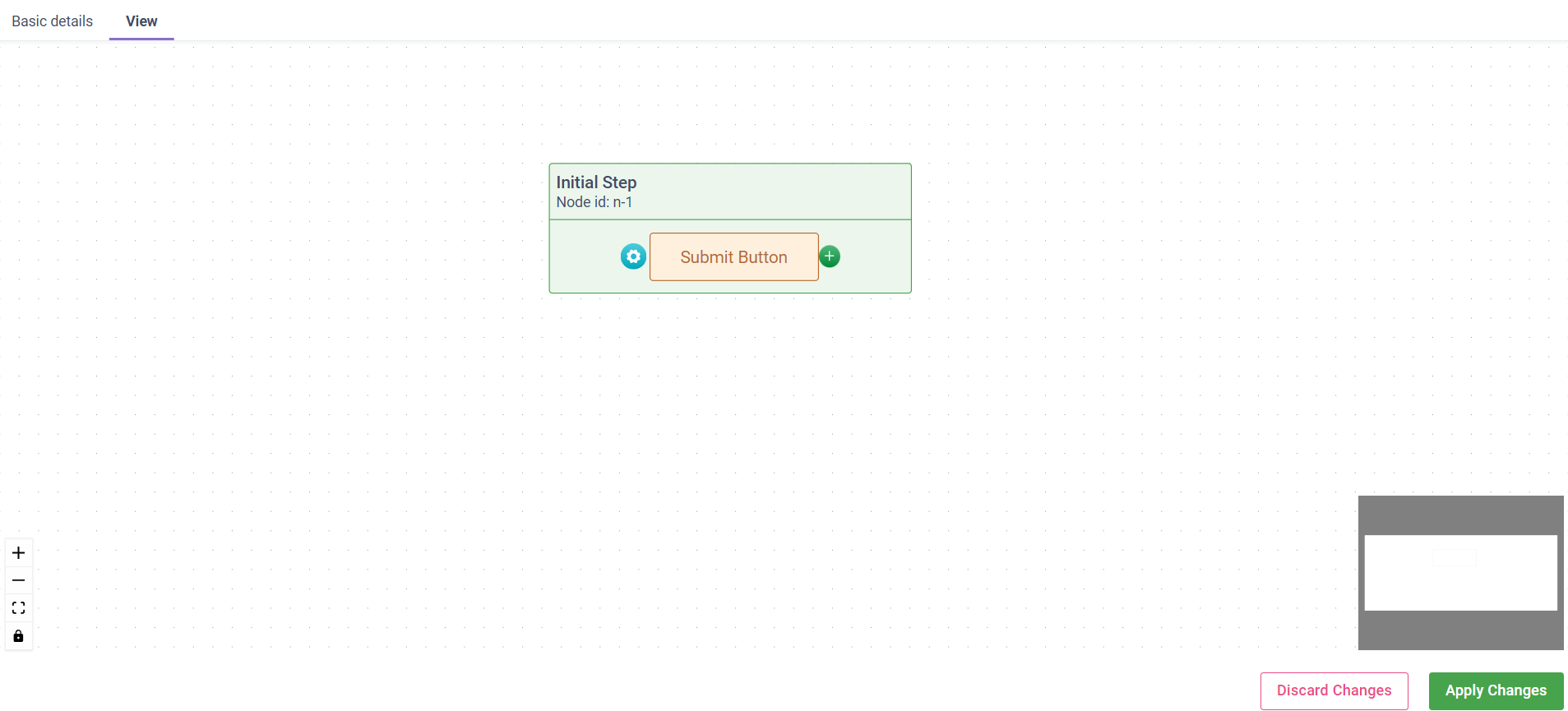

The view screen with the workflow diagram is displayed. You can start designing your workflow for your form here.

At this stage, you will see a node with the button, Submit of the Claim Reimbursement form. This is the first step of the workflow representing that the initiator has submitted the reimbursement form.

Please ensure that the form selected must contains a "Status" type field. Learn how to

5. To save the configuration, click Apply changes. The workflow with the selected settings is saved in the system. We can come back later and as required.

edit the settings
